HML706 DampMaster Data Plus

Professional material moisture measuring device with CM mode assessment

Integrated material characteristics for 513

types of wood and 29 types of building materials

Assessment by CM method for 11 building materials

Memory cache with time and location indicator for easy analysis of larger test series

Interface to access memory cache and control device functions via PC

Favourite management for the most frequently used materials

Universal index measurement for the assessment of unknown materials or composites

Reference measurement for easy recording of humidity profiles

12-position wet/dry indicator with programmable limit values for quick assessment

Easy-to-operate menu system and integrated material lists in 22 languages

Auto-HOLD function to hold the last stable measured value

Bar graph display of measured values for simplified visualisation

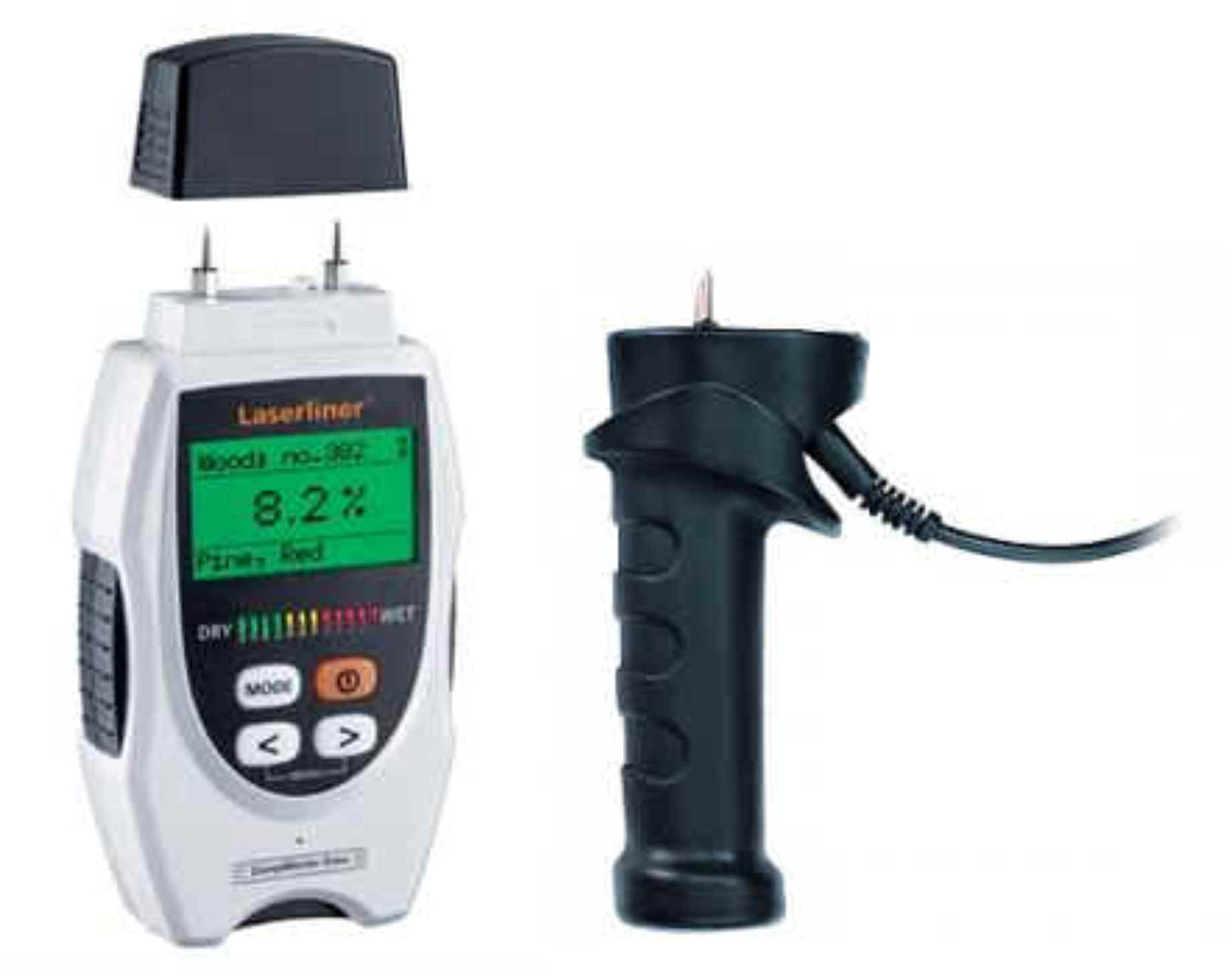

Hammer Probe: ergonomic grip for easy insertion into the material to be measured; specially designed for hard wood and soft building materials.

Firmware updates ensure that the device is always up-to-date







TECHNICAL DATA

MEASURING PRINCIPLE

Resistance measurement by way of

integrated electrodes

MATERIALS

513 types of wood, 29 types of building

materials, 11 types of materials in CM mode

MEASURING RANGE / ACCURACY

Wood: 0%30% / 1%

30%60% / 2%

60%90% / 4%

other materials: 0.5%

FAVOURITE MANAGEMENT

20 memory locations

LOCATION MANAGEMENT

20 position markers

DATA MEMORY 100 measurements

OPERATING TEMPERATURE 0 C40 C

STORAGE TEMPERATURE -10 C60 C

MAX. RELATIVE HUMIDITY 85 %

POWER SUPPLY 1 x 9V 6LR61

WEIGHT 0.166 kg

DIMENSIONS (W x H x D)

77 mm x 147 mm x 34 mm

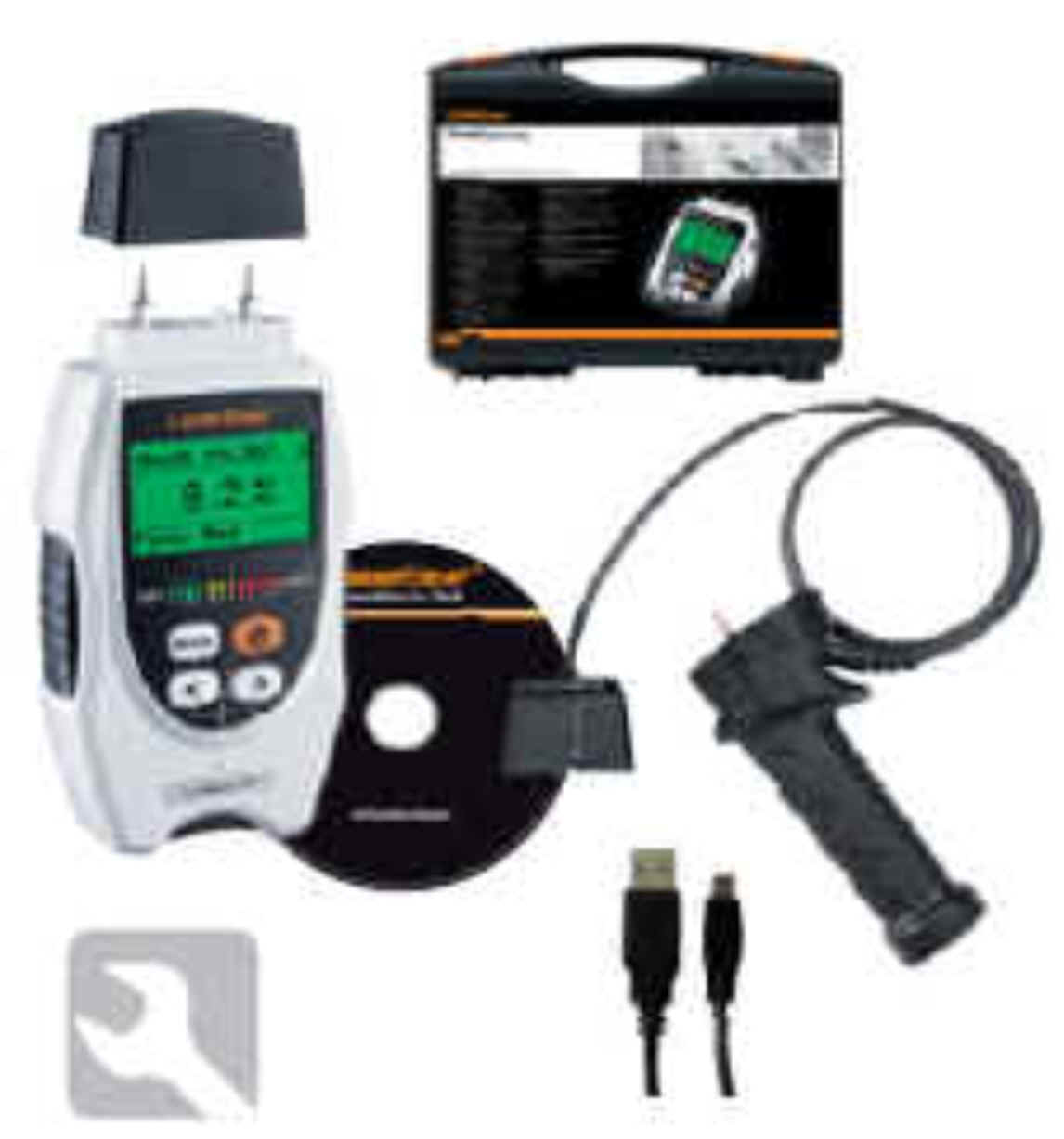

INCLUYE

HML706 DampMaster Data Plus

including carrying case

HML720 HammerProbe

Protective cover with self-test function

Software

USB cable

Battery



Package size (W x H x D)

340 x 275 x 83 mm
